Huawei Inter VLAN Routing

Bu bölümde inter VLAN routing yapmayı, tek bir fiziksel interface üzerinde sub-interface oluşturma, VLAN’lar arasında arp broadcast trafiğini aktif etmeyi göreceğiz.

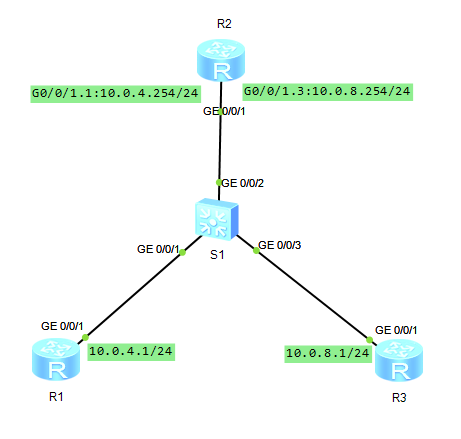

 asd
  1. Genel konfigürasyon
CLIGURU-R1,CLIGURU-R3 ve CLIGURU-S1 konfigürasyonu ile başlayalım, cihazlara isim ve ip addresslerini verelim.
CLIGURU-R1 için G0/0/1’e ip address  10.0.4.1/24 olarak verelim.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname CLIGURU-R1
[CLIGURU-R1]interface GigabitEthernet 0/0/1
[CLIGURU-R1-GigabitEthernet0/0/1]ip address 10.0.4.1 24
CLIGURU-R3 için G0/0/1’e ip address  10.0.8.1/24 olarak verelim.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname CLIGURU-R3
[CLIGURU-R3]interface GigabitEthernet 0/0/1
[CLIGURU-R3-GigabitEthernet0/0/1]ip address 10.0.8.1 24
2. Vlan konfigürasyonu .
CLIGURU-S1’de vlan 4 ve 8 oluşturalım. Interface G0/0/1 VLAN 4 ve interface G0/0/3’de VLAN 8 dahil olacak şekilde ayarlayalım.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname CLIGURU-S1
[CLIGURU-S1]vlan batch 4 8
Info: This operation may take a few seconds. Please wait for a moment…done.
[CLIGURU-S1]interface GigabitEthernet 0/0/1
[CLIGURU-S1-GigabitEthernet0/0/1]port link-type access
[CLIGURU-S1-GigabitEthernet0/0/1]port default vlan 4
[CLIGURU-S1-GigabitEthernet0/0/1]quit
[CLIGURU-S1]interface GigabitEthernet 0/0/3
[CLIGURU-S1-GigabitEthernet0/0/3]port link-type access
[CLIGURU-S1-GigabitEthernet0/0/3]port default vlan 8
[CLIGURU-S1-GigabitEthernet0/0/3]quit
Interface G0/0/2 de VLAN  4 ve 8’in iletişime geçebilmesi için interface’i trunk olarak ayarlayalım.
[CLIGURU-S1]interface GigabitEthernet 0/0/2
[CLIGURU-S1-GigabitEthernet0/0/2]port link-type trunk
[CLIGURU-S1-GigabitEthernet0/0/2]port trunk allow-pass vlan 4 8

3. CLIGURU-R2 üzerinden Sub-interface ve VLAN routing konfigürasyonu.
Sub-interface G0/0/1.1 ‘i oluşturalım ve VLAN 4 için gateway olacak şekilde konfigure edelim ve G0/0/1.3 için VLAN 8’e gateway olarak konfigure edelim.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname CLIGURU-R2
[CLIGURU-R2]interface GigabitEthernet 0/0/1.1
[CLIGURU-R2-GigabitEthernet0/0/1.1]ip address 10.0.4.254 24
[CLIGURU-R2-GigabitEthernet0/0/1.1]dot1q termination vid 4
[CLIGURU-R2-GigabitEthernet0/0/1.1]arp broadcast enable
[CLIGURU-R2-GigabitEthernet0/0/1.1]quit
[CLIGURU-R2]interface GigabitEthernet 0/0/1.3
[CLIGURU-R2-GigabitEthernet0/0/1.3]ip address 10.0.8.254 24
[CLIGURU-R2-GigabitEthernet0/0/1.3]dot1q termination vid 8
[CLIGURU-R2-GigabitEthernet0/0/1.3]arp broadcast enable
CLIGURU-R1 ve CLIGURU-R3 arasındaki bağlantıyı kontrol edelim.
<CLIGURU-R1>ping 10.0.8.1
PING 10.0.8.1: 56 data bytes, press CTRL_C to break
Request time out
Request time out
Request time out
Request time out
Request time out
— 10.0.8.1 ping statistics —
5 packet(s) transmitted
0 packet(s) received
100.00% packet loss
CLIGURU-R1 ve CLIGURU-R3 üzerinde default route konfigurasyonu yapalım.
 [CLIGURU-R1]ip route-static 0.0.0.0 0.0.0.0 10.0.4.254
 [CLIGURU-R3]ip route-static 0.0.0.0 0.0.0.0 10.0.8.254
Tekrar CLIGURU-R1 ve CLIGURU-R3 bağlantısını kontrol edelim.
<CLIGURU-R1>ping 10.0.8.1
PING 10.0.8.1: 56 data bytes, press CTRL_C to break
Reply from 10.0.8.1: bytes=56 Sequence=1 ttl=254 time=290 ms
Reply from 10.0.8.1: bytes=56 Sequence=2 ttl=254 time=160 ms
Reply from 10.0.8.1: bytes=56 Sequence=3 ttl=254 time=120 ms
Reply from 10.0.8.1: bytes=56 Sequence=4 ttl=254 time=60 ms
Reply from 10.0.8.1: bytes=56 Sequence=5 ttl=254 time=90 ms
— 10.0.8.1 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 60/144/290 ms
<CLIGURU-R2>display ip routing-table
Route Flags: R – relay, D – download to fib
—————————————————————————
Routing Tables: Public
Destinations : 8       Routes : 8
Destination/Mask Proto   Pre Cost Flags NextHop     Interface
10.0.4.0/24   Direct 0   0   D   10.0.4.254     GigabitEthernet0/0/1.1
10.0.4.1/32   Direct 0   0   D   10.0.4.1       GigabitEthernet0/0/1.1
10.0.4.254/32 Direct 0   0   D   127.0.0.1    GigabitEthernet0/0/1.1
10.0.8.0/24  Direct 0   0   D  10.0.8.254     GigabitEthernet0/0/1.3
10.0.8.1/32  Direct 0   0   D   10.0.8.1       GigabitEthernet0/0/1.3
10.0.8.254/32 Direct 0   0   D   127.0.0.1       GigabitEthernet0/0/1.3
127.0.0.0/8   Direct 0   0     D   127.0.0.1       InLoopBack0
127.0.0.1/32 Direct 0   0     D   127.0.0.1       InLoopBack0
Final …
<CLIGURU-R1>display current-configuration
#
sysname CLIGURU-R1
#
interface GigabitEthernet0/0/1
ip address 10.0.4.1 255.255.255.0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.4.254
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
Return
<CLIGURU-R2>display current-configuration
#
sysname CLIGURU-R2
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/1.1
dot1q termination vid 4
ip address 10.0.4.254 255.255.255.0
arp broadcast enable
#
interface GigabitEthernet0/0/1.3
dot1q termination vid 8
ip address 10.0.8.254 255.255.255.0
arp broadcast enable
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
Return
[CLIGURU-R3]display current-configuration
#
sysname CLIGURU-R3
#
interface GigabitEthernet0/0/1
ip address 10.0.8.1 255.255.255.0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.8.254
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
Return
<CLIGURU-S1>display current-configuration
#
sysname CLIGURU-S1
#
vlan batch 4 8
#
interface GigabitEthernet0/0/1
port link-type access
port default vlan 4
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 4 8
#
interface GigabitEthernet0/0/3
port link-type access
port default vlan 8
#
user-interface con 0
user-interface vty 0 4
#
return
